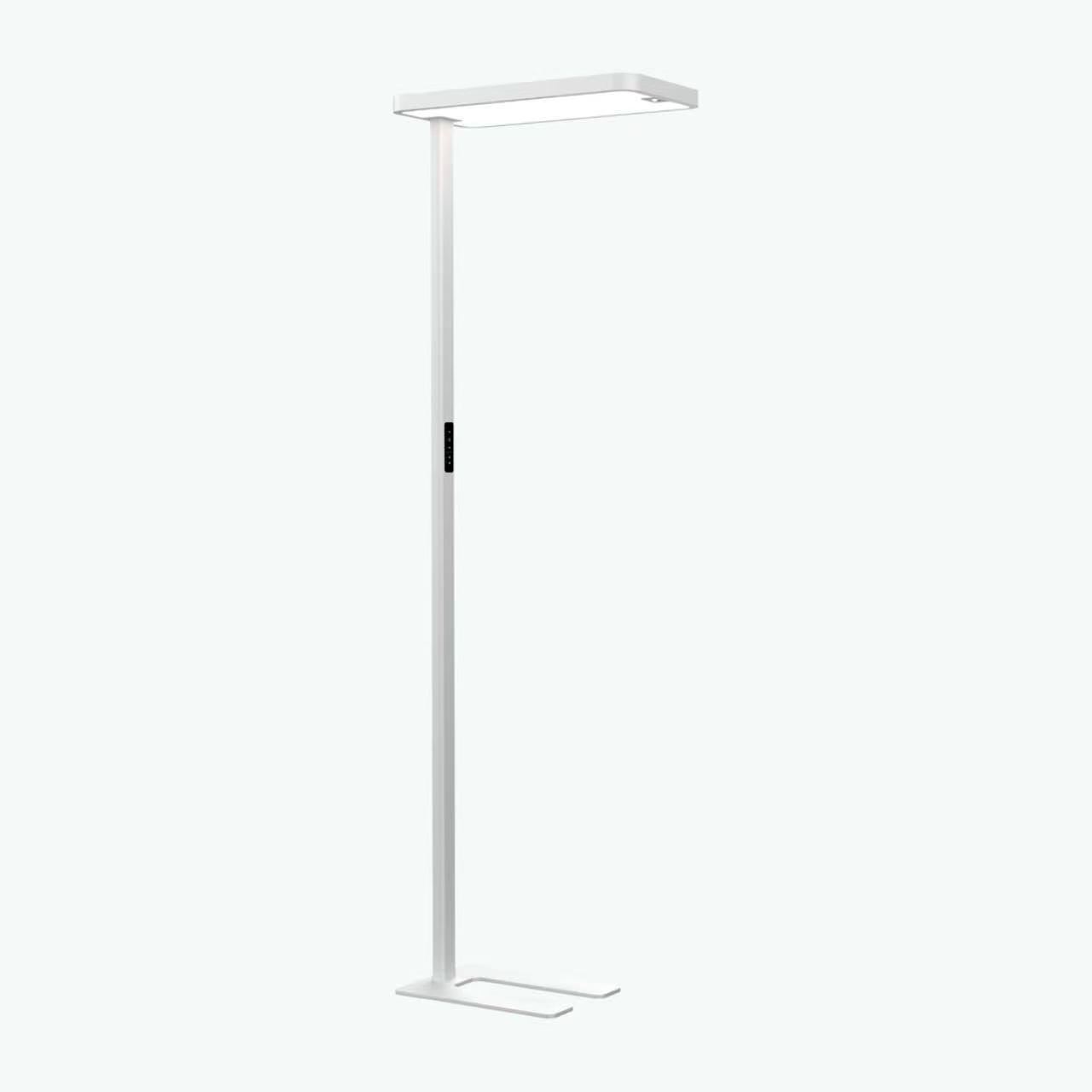

FS2530 Series

Mori-C Floor Lamp

Office floor lamp · 100 W

Mori-C is a 100 W direct/indirect office floor lamp with 12,000 lm output and UGR <13. Independent up/down touch dimming, motion and daylight sensors support office lighting, with a fixed colour temperature selected when ordering.

Light output: 12,000 lm
Glare control: UGR <13
Colour rendering: CRI ≥80
Luminous efficacy: 120 lm/W

Specifications

Photometric Data

Model code: BR-FS2530-100W-F10
Input power: 100 W
Total luminous output: 12,000 lm
Luminous efficacy: 120 lm/W
Indirect / direct ratio: 75 / 25
Indirect luminous output: 9,000 lm
Direct luminous output: 3,000 lm
Colour temperature: Fixed CCT — 3000 K / 4000 K / 6000 K options
CRI: ≥80
UGR: <13
Beam angles: Indirect 111° / Direct 77°
LED source: LUMILEDS SMD2835

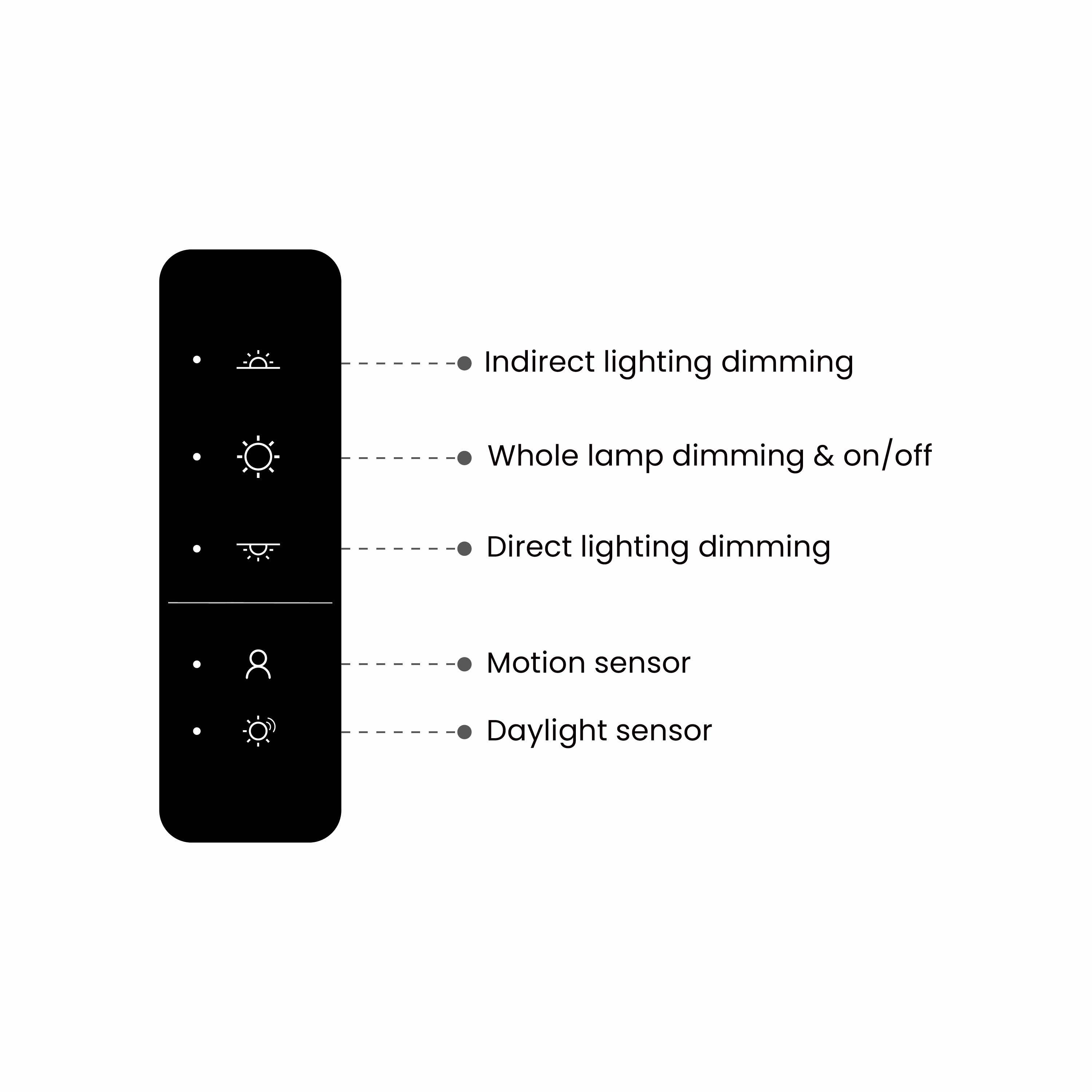

Control

Sensors: Motion + daylight
Control interface: Touch control · direct / indirect independently dimmable
CCT adjustment: No — fixed CCT selected when ordering

Electrical

Input: AC 200–240 V / 50 Hz
Power factor: >0.9

Construction

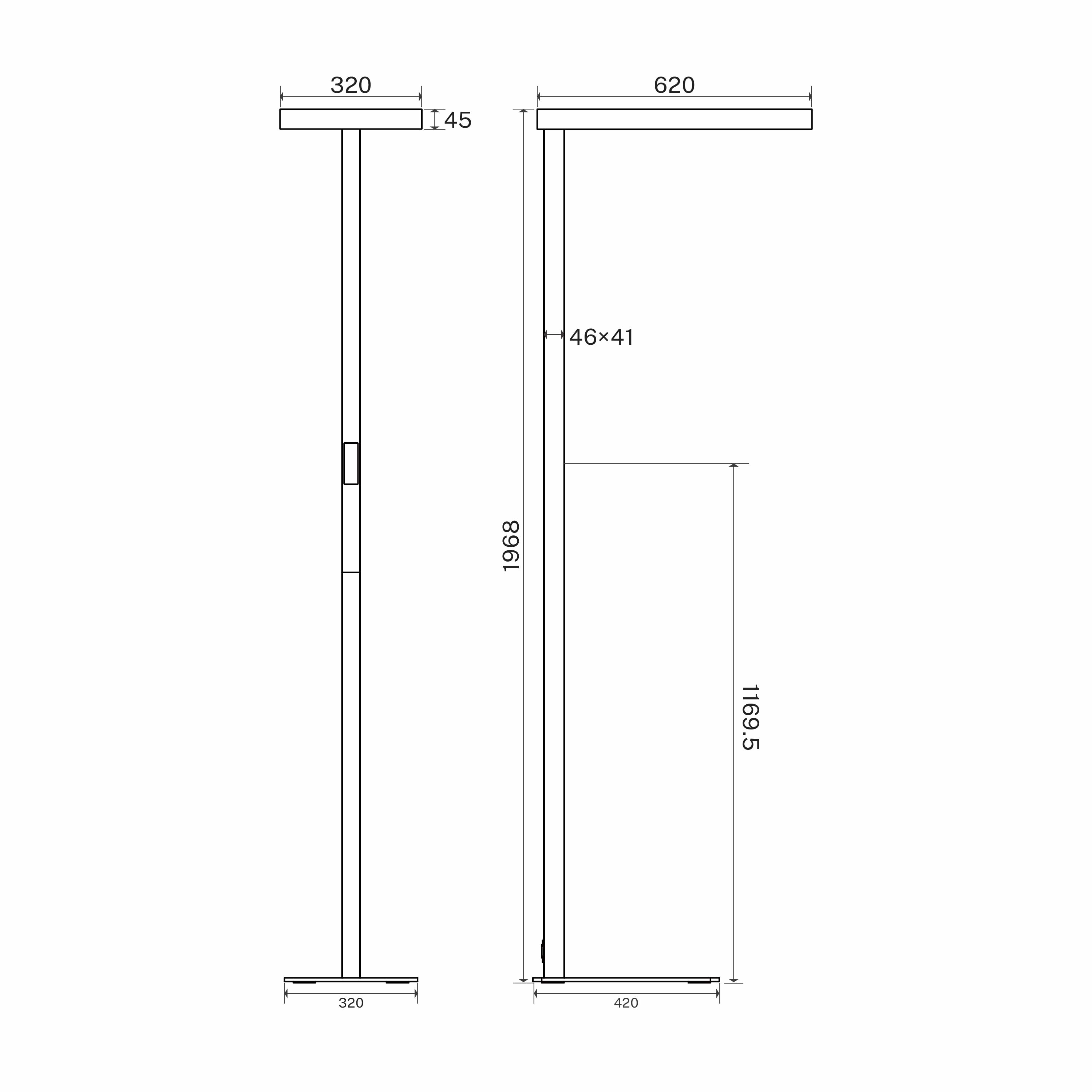

Dimensions (parameter sheet): 620 × 320 × 1966 mm
Material: Aluminium
Surface finish: Powder coated
Finish: Silver / White / Black
Protection rating: IP40
Cable length: 1.8 m

Lifetime & Warranty

LED lifetime: ≥36,000 h
Operating temperature: 0–40 °C
Warranty: 3 or 5 years, subject to quotation
Carton dimensions: 1087 × 502 × 110 mm

Downloads

Product specifications

Installation manual

Control & operation manual

Test reports
